Ventis MX4 Multi Gas Detector

Let the Ventis MX4 gas detector take your safety program to the next level.

  • Brand Industrial Scientific
  • Monitors 1-4 gases
  • Configures with or without a pump
  • Available with a black or safety orange overmold
  • iNet ® Ready and DSX™ Docking Station compatible

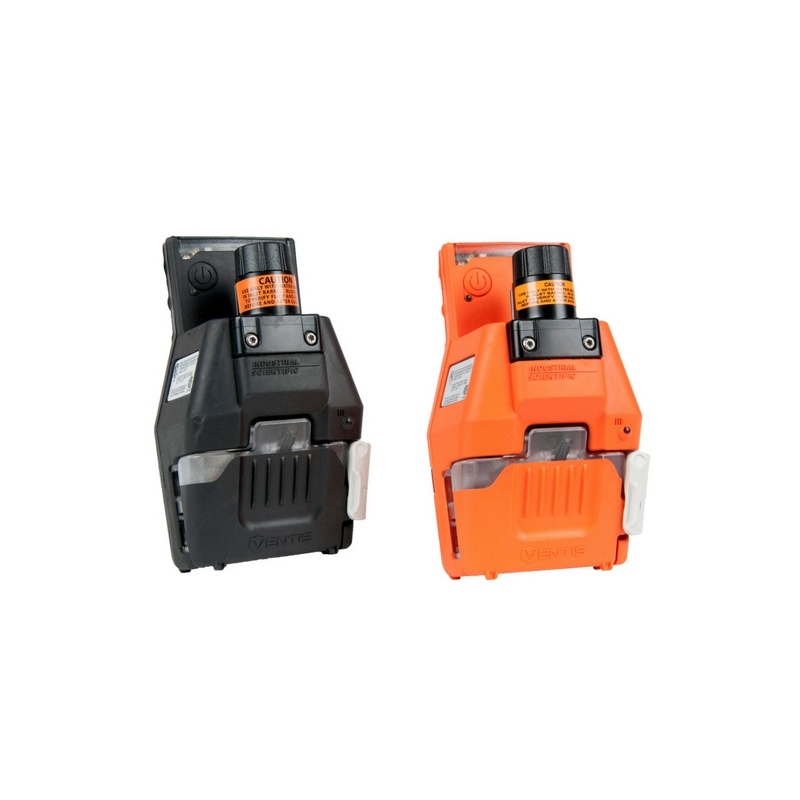

  • Compatible with the Ventis Slide-on pump

Overview
  • Detect from one to four gases with a wide range of sensor options
  • Draw samples from up to 100 feet with an optional, integrated sampling pump
  • Gain increased instrument visibility with a safety orange overmold
  • Realize true portability with multi-gas protection in single-gas size
  • Use the extended range battery for up to 20 hours (without pump)
  • Discover a better way to do gas detection with the Ventis on iNet

Odering Information

Part No. Description More Information
VTS-K1231100y0z Ventis – LEL, CO, H2S, O2, Li-ion, Desktop Charger, Black
VTS-K1231201y0z Ventis – LEL, CO, H2S, O2, Li-ion, Desktop Charger/Datalink, Safety Orange
VTS-K5231300y1z Ventis – LEL, SO2, H2S, O2, Li-ion, Auto Charger, Black, Soft Case
VTS-K1031301y0z Ventis – LEL, CO, O2, Li-ion, Auto Charger, Safety Orange
VTS-K1431000y1z Ventis – LEL, CO, NO2, O2, Li-ion, No Charger, Black, Soft Case
VTS-K1232111y0z Ventis with Pump – LEL, CO, H2S, O2, Ext. Li-ion, Desktop Charger, Safety Orange

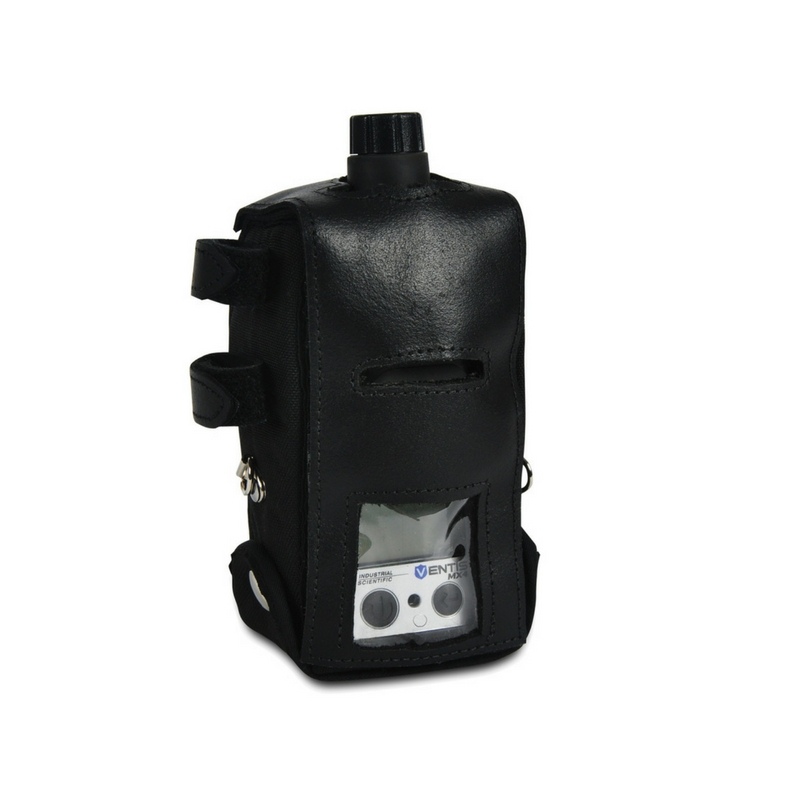

VTS-K1232110y1z Ventis with Pump – LEL, CO, H2S, O2, Ext. Li-ion, Desktop Charger, Black, Soft Case
VTS-L1232110y2z Ventis with Pump – LEL (methane), CO, H2S, O2, Ext. Li-ion, Desktop Charger, Black, Hard Case with Display Window
VTS-K5232111y0z Ventis with Pump – LEL, SO2, H2S, O2, Ext. Li-ion, Desktop Charger, Safety Orange

Specification

INSTRUMENT WARRANTY:

Two- year warranty, including sensors and battery

CASE MATERIALS:

Polycarbonate w/ protective rubber overmold

DIMENSIONS:

103 mm x 58 mm x 30 mm (4.1″ x 2.3″ x 1.2″) – Ventis lithium-ion battery version

172 mm x 67 mm x 66 mm (6.8″ x 2.6″ x 2.6″) – Ventis with pump lithium-ion battery version

WEIGHT:

182 g (6.4 oz) – Ventis, lithium-ion battery version

380 g (13.4 oz) – Ventis with Pump, lithium-ion battery version

Operating T EMPERATURE RANGE:

-20°C- 50°C (-4°F-122°F)

OPERATING HUMIDITY RANGE:

15%-95% Non-condensing (continuous)

DISPLAY:

Backlit Liquid Crystal Display (LCD)

POWER SOURCE/RUN TIME:

Rechargeable lithium-ion battery pack
(12 hours typical @ 20ºC) – Ventis

Rechargeable extended-range lithium-ion battery pack
(20 hours typical @ 20ºC) – Ventis
(12 hours typical @ 20ºC) – Ventis with pump

Replaceable AAA alkaline battery pack
(8 hours typical @ 20ºC) – Ventis
(4 hours typical @ 20ºC) – Ventis with pump

ALARMS:

Ultra-bright LEDs, loud audible alarm (95 dB at 30 cm), and vibrating alarm

SENSORS:

Combustible gases/methane – Catalytic Diffusion

O2, CO/H2 low, CO, H2S, NO2, SO2 – Electrochemical

SENSOR MEASURING RANGES:

Combustible Gases: 0-100% LEL in 1% increments

Methane (CH4): 0-5% of vol. in 0.01% increments

Oxygen (O2): 0-30% of vol. in 0.1% increments

Carbon monoxide (CO/H2 low): 0-1,000 ppm in 1 ppm increments

Carbon monoxide (CO): 0-1,000 ppm in 1 ppm increments

Hydrogen sulfide (H2S): 0-500 ppm in 0.1 ppm increments

Nitrogen dioxide (NO2): 0-150 ppm in 0.1 ppm increments

Sulfur dioxide (SO2): 0-150 ppm in 0.1 ppm increments

Approvals & Certifications

UL:

Class I, Division 1, Groups A B C D, T4; Zone 0, AEx ia IIC T4

Class II, Groups F G (Carbonaceous & Grain dust);

IP66; IP67

ATEX:

Ex ia IIC T4 Ga and Ex ia I Ma;

Equipment Group and Category II 1G and I M1; IP66; IP67

IECEx:

Ex ia IIC T4 Ga; IP66; IP67

CSA:

Class I, Division 1, Groups A B C D, T4; Ex d ia IIC T4
C22.2 No. 152 for %LEL reading only

ANZEx:

Ex ia s Zone 0 I/IIC T4; IP66; IP67

INMETRO:

Ex ia IIC T4 Ga; IP66; IP67

KOSHA :

Ex d ia IIC T4

MSHA :

30 CFR Part 22; Permissible for underground mines; Li-ion versions only

PA-DEP:

Permissible for PA Bituminous Underground Mines

China Ex:

Ex ia IIC T4 Ga

China CMC:

Metrology approval

China MA:

Approved for underground mines; diffusion (without pump)
standard Alkaline version only

GOST- K:

PBExdiaI X / 1ExdiaIICT4 X

GOST-R:

PBExdiaI X / 1ExdiaIICT4 X
MED: Portable Multi-Gas Detector, Category 2 (MED 2012/32/EU): Li-Ion only; Charger/Docking Station accessories; category 1
SANS: SANS 1515-1; Type A; Ex ia I/IIC T4 IP66/67; Li-Ion only
